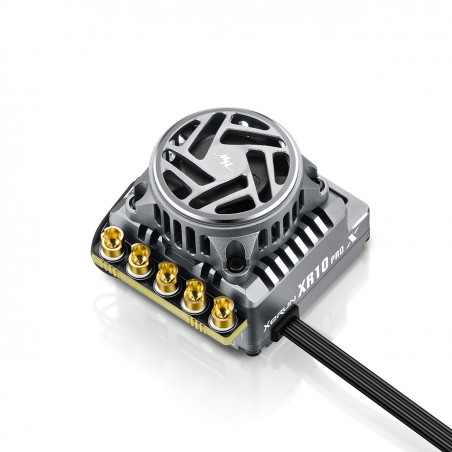

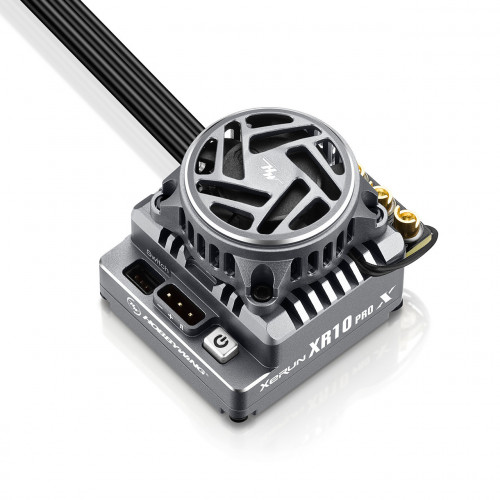

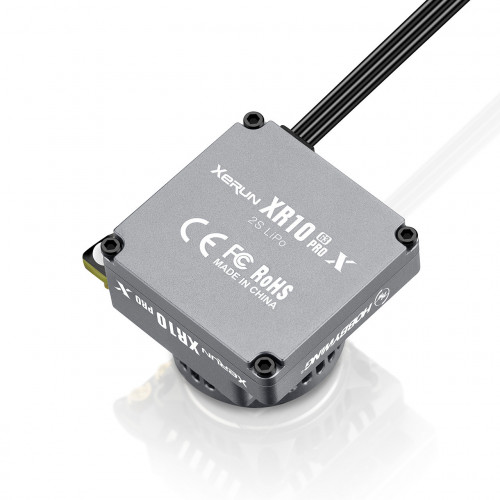

Hobbywing Xerun XR10 Pro G3X - 160A

Product information "Hobbywing Xerun XR10 Pro G3X Brushless ESC 160A, 2s LiPo"

The Hobbywing XeRun XR10 Pro G3X sets new standards for competition ESCs and raises the performance level with many innovative features. Compared to its predecessor, the XR10 Pro G2S, the ESC is now equipped with a frameless and improved fan. Additionally, the optimized LCG design has reduced the height by 2 mm, leading to a lower center of gravity and improved vehicle balance. Moreover, the XR10 Pro G3X features an integrated data logging module that can store up to 19 data sets of 20 minutes each, eliminating the need for a constant connection to the OTA Bluetooth module.

In addition to the integrated data logging, the G3X comes with many interesting new features! The freewheeling function ensures more efficient cooling by noticeably lowering the operating temperature compared to its predecessor. The new Disc Brake Mode allows extremely precise and linear brake force control, making braking consistent and controllable across all speeds. With over 44 programmable parameters and two adjustment levels, the settings can now be better tailored to any situation.

Compared to the G3 standard version in black, the G3X delivers a more aggressive power output and comes standard with 12AWG wires and no reverse polarity protection.

Features:

Integrated data logging (OTA/LCD required for analysis)

Optimized temperature control

Disc Brake Mode for precise brake control

44+ parameters

Softening 2.0

LCG design and optimized wiring

Optimized for stock competitions

Technical Data:

Type: Brushless, Sensored

Current (continuous/peak): 160A / 1200A

Input Voltage: 2S LiPo

BEC: Switch Mode 5V-7.4V @ 5A

Motor Types: Touring Car: 4.5T+, Buggy: 5.5T+, 3650 (540) Size 2-Pole Motor

Fan: Yes, powered by the BEC

Programming: LCD programming box, OTA programming module

Size: 35 x 33.6 x 30.3mm

Weight: 93g (without cables)

Applications: 1/10

Accessories (optional):

HW30502001 LCD programming box

HW30850400 OTA programming module
